Project Status:

Implemented in 2021

About the project

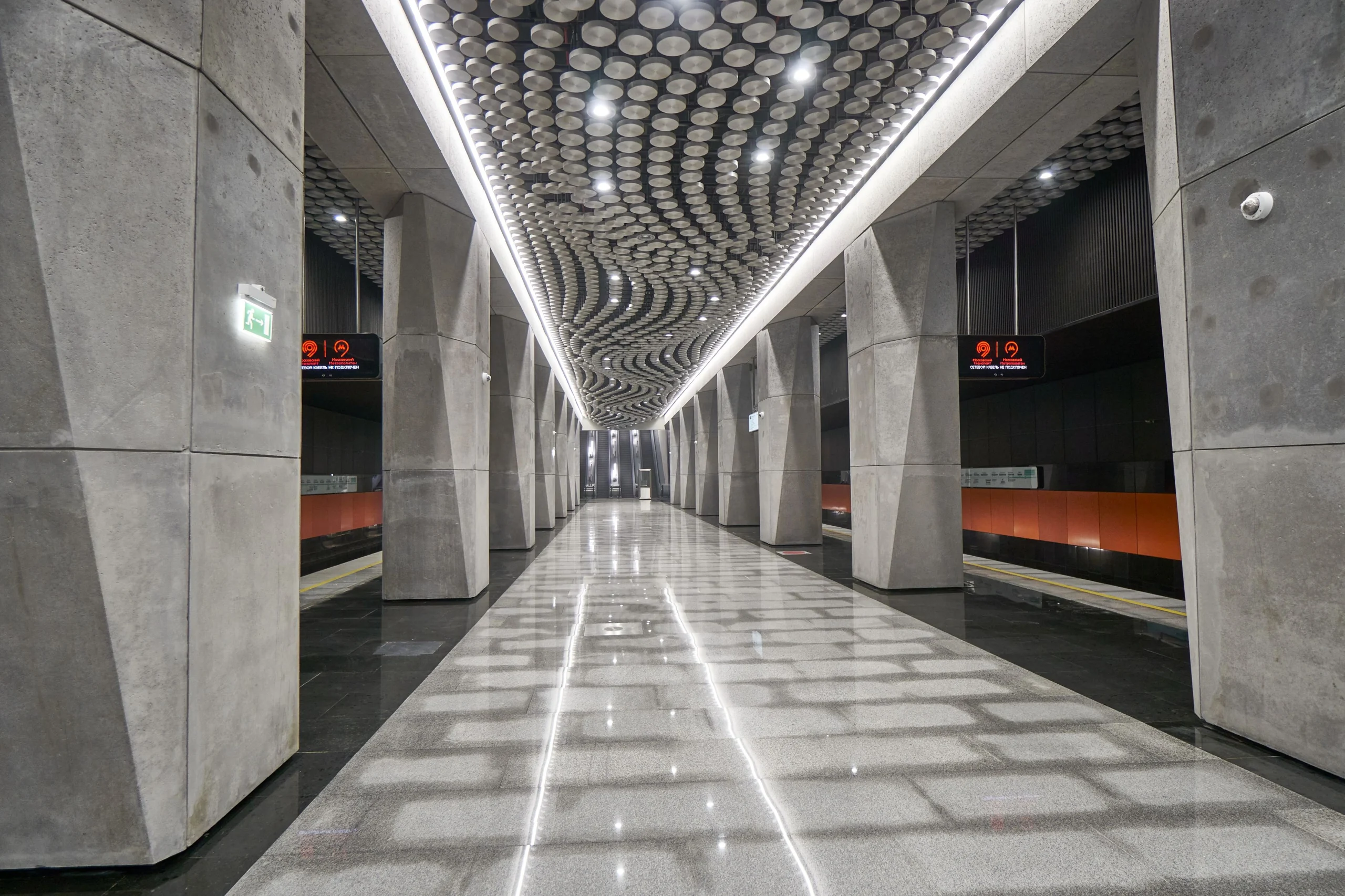

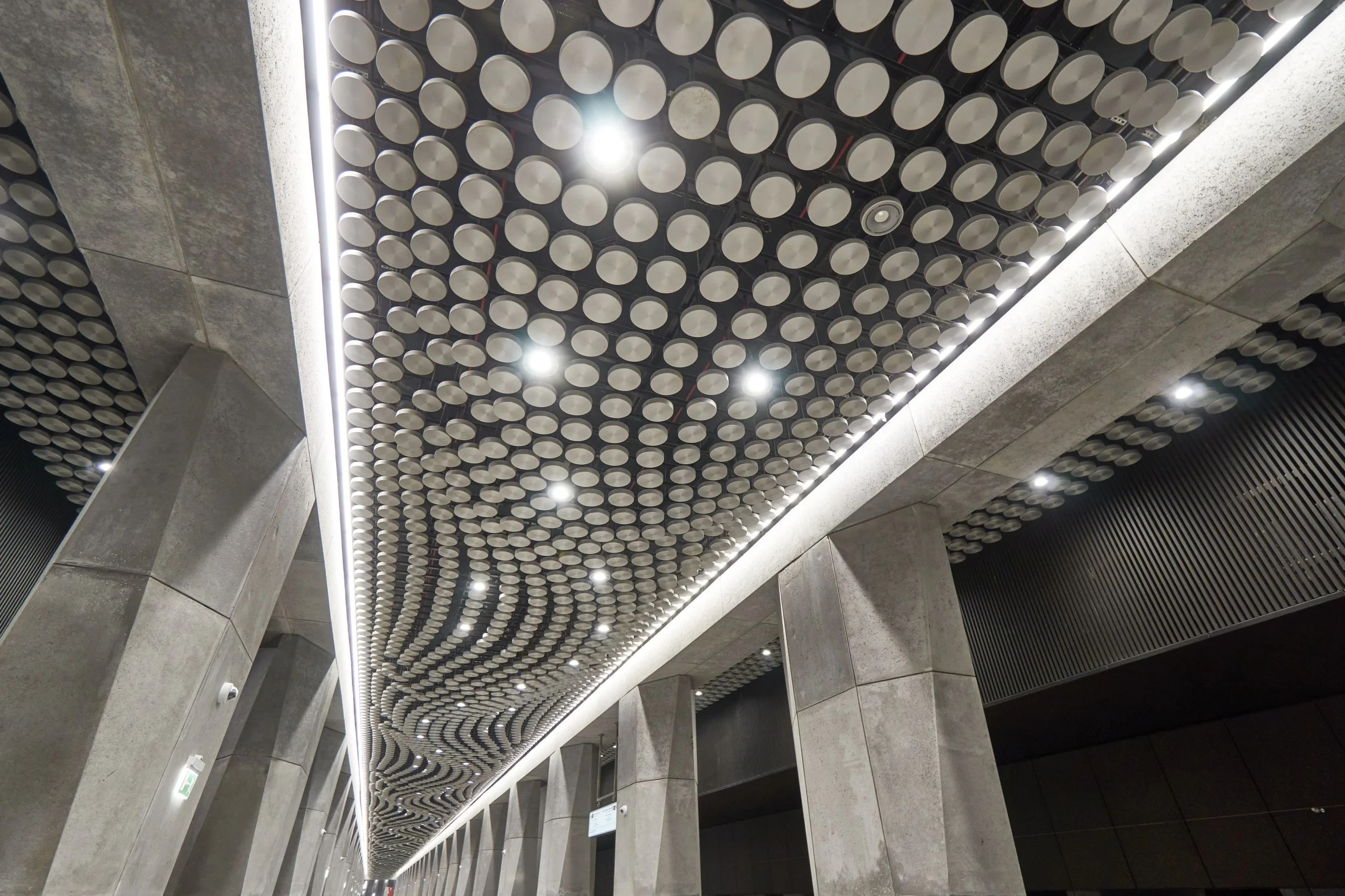

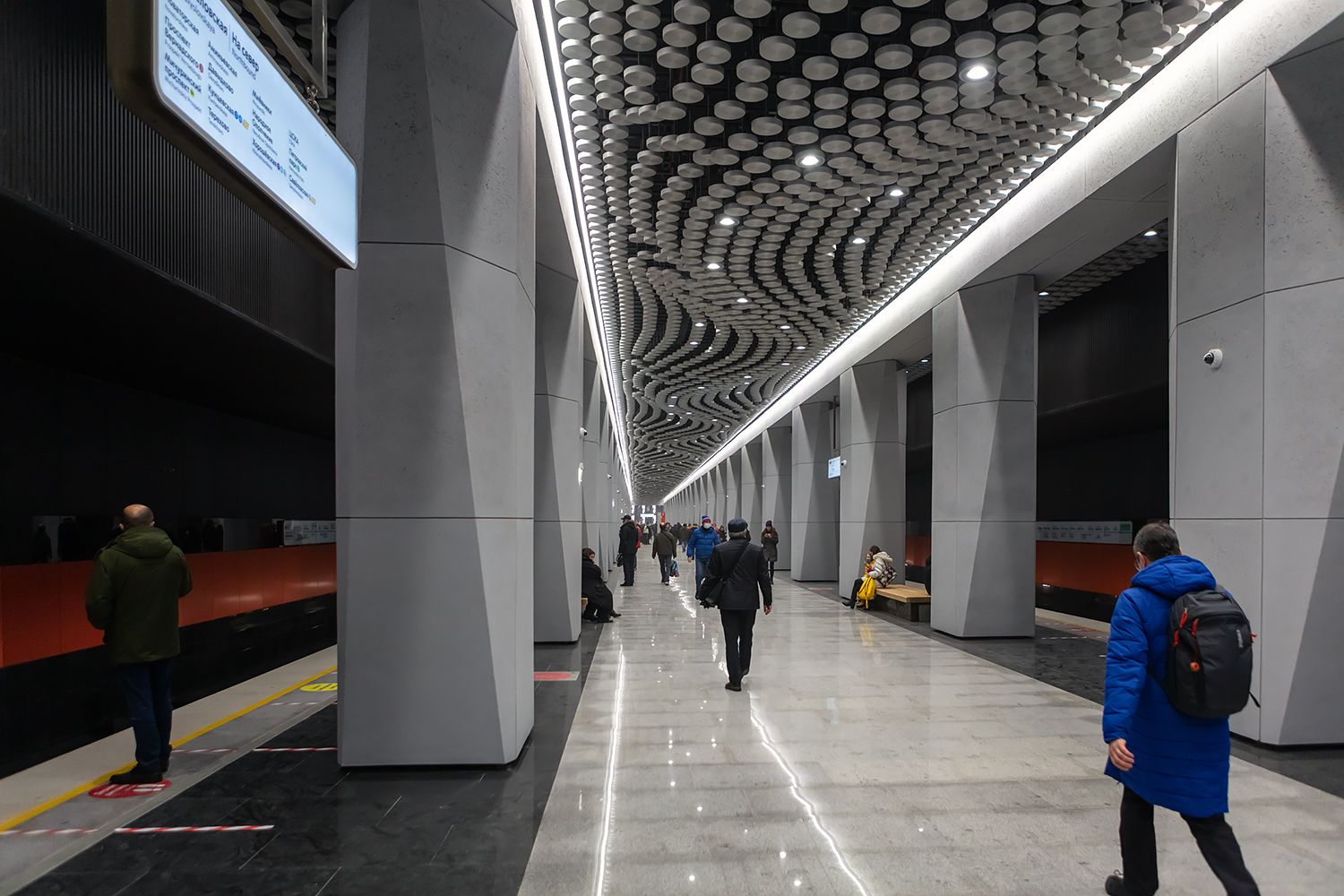

Vorontsovskaya Metro Station is a modern facility of the Moscow Metro on the southern section of the Large Circle Line (LCL). It is located in the Obruchevsky District of the South-Western Administrative Okrug and is equipped with two underground vestibules with exits to Starokaluzhskoye Highway, Profsoyuznaya Street, and Khlebobulochny Passage. The station is a deep column three-span station with a single island platform (at a depth of approximately 27.4 meters) and features a transfer to Kaluzhskaya Station of the Kaluzhsko-Rizhskaya Line. The architectural design of the station is executed in a space theme, reflecting a conceptual connection with the scientific heritage of cosmonautics: the ceiling of the central hall is decorated with a complex 3D structure resembling the Milky Way.

Scope of works

  • Total tunnel length: 4.4 km
  • Internal tunnel diameter: 5.4 meters
  • Tunnel construction method: TBM
  • Installation of the permanent way superstructure: 4.8 km
  • Total built-up area: 25 thousand m2
  • Cast-in-place reinforced concrete of the station: 40 thousand m3
  • Installation of engineering systems: 37 systems
  • Total length of cable products: 600 km
  • 505 service and technical rooms at the station
  • Architectural and finishing works: granite, marble, aluminum panels
  • Commissioning works
