Shallow-depth metro station
-
Production
-
Transport projects
-
Design
Project Status:
Implemented in 2021About the project

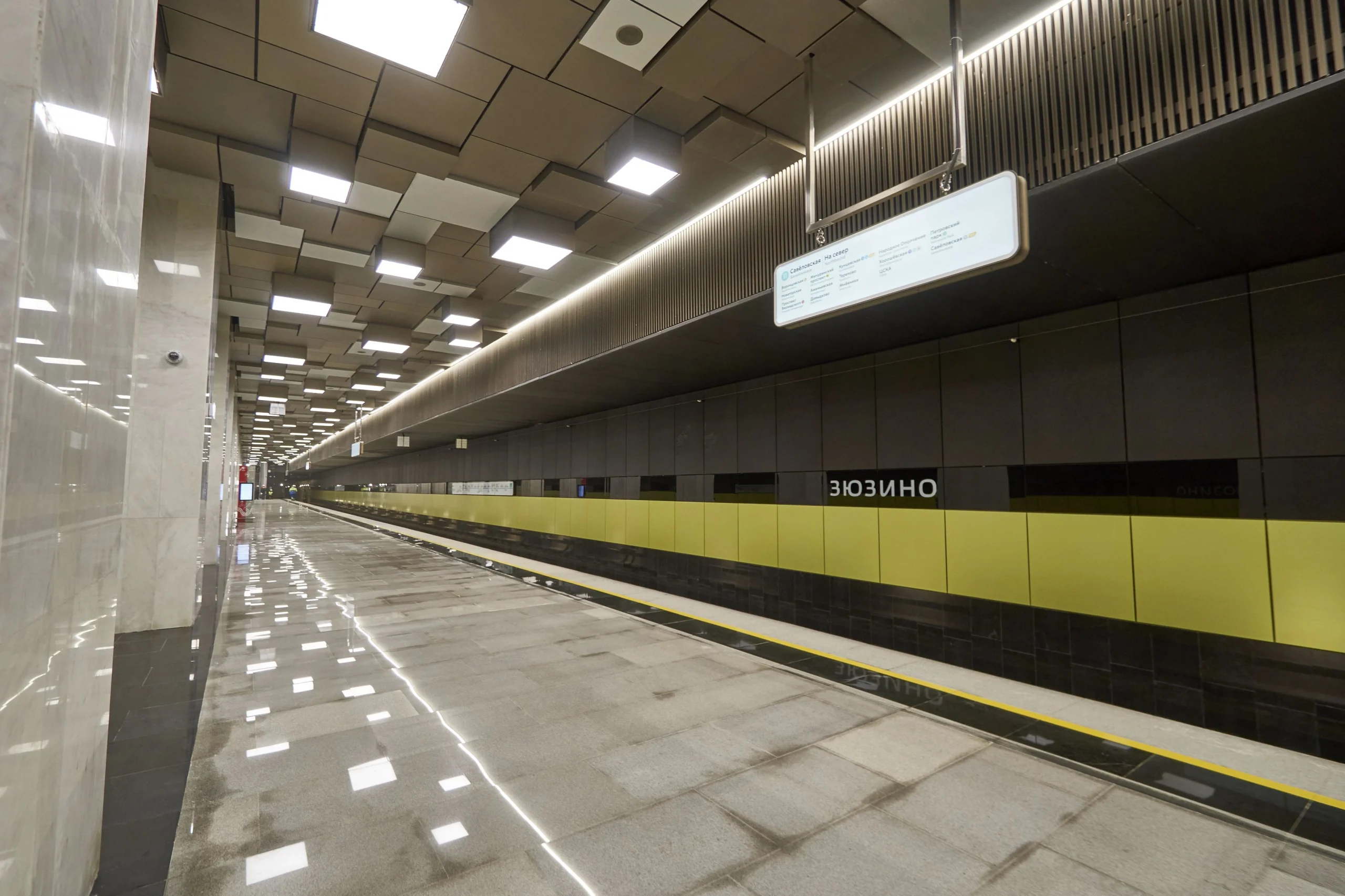

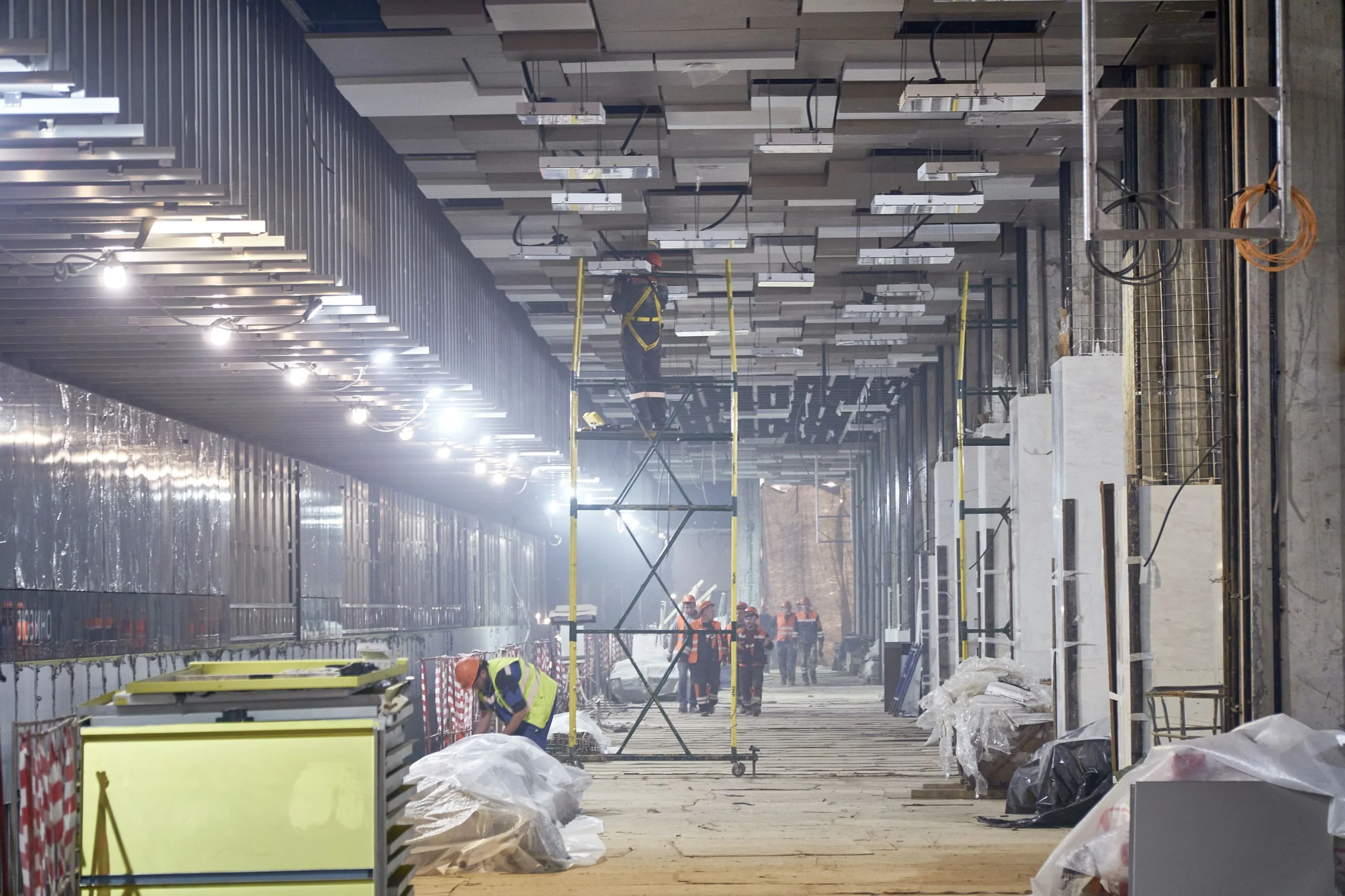

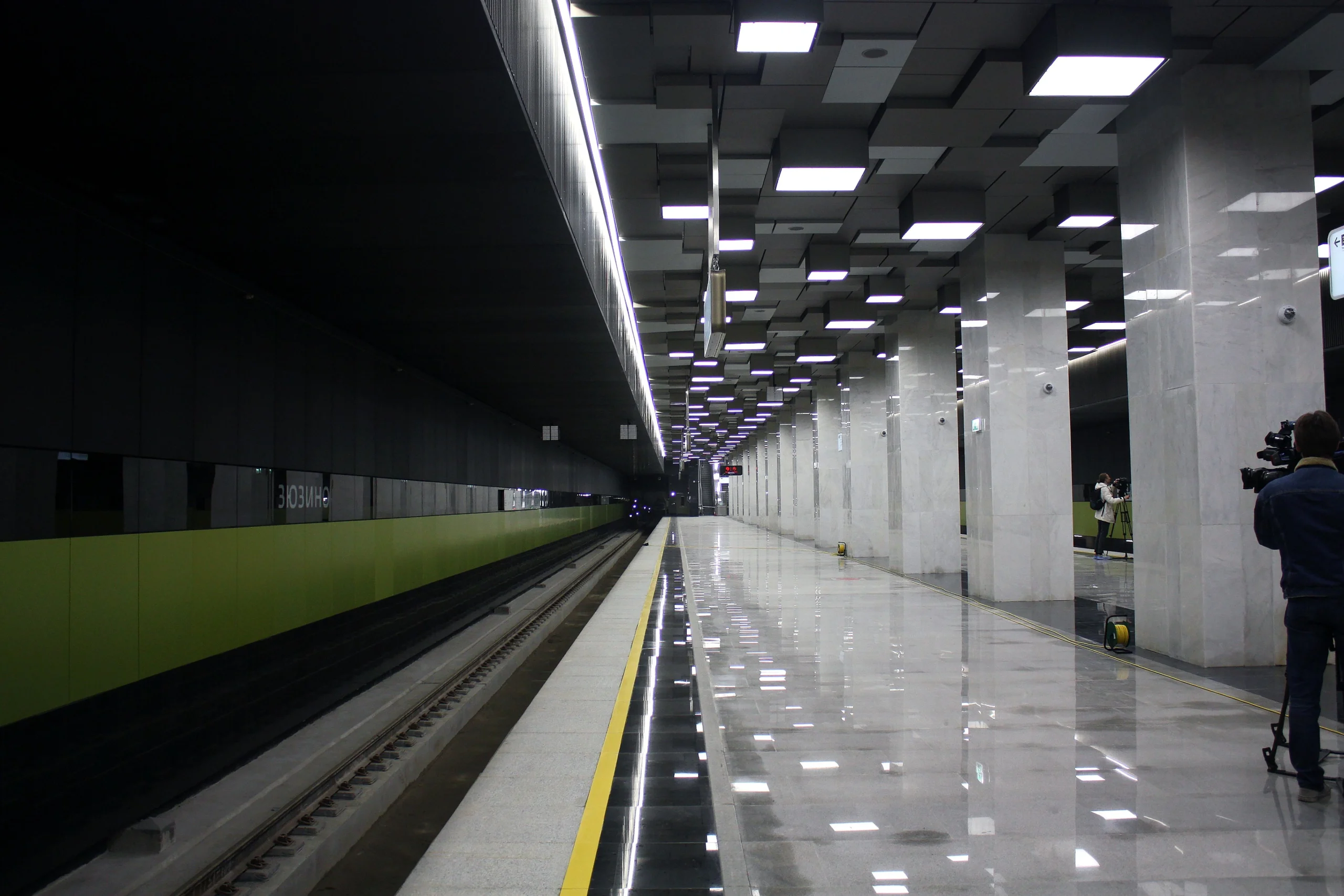

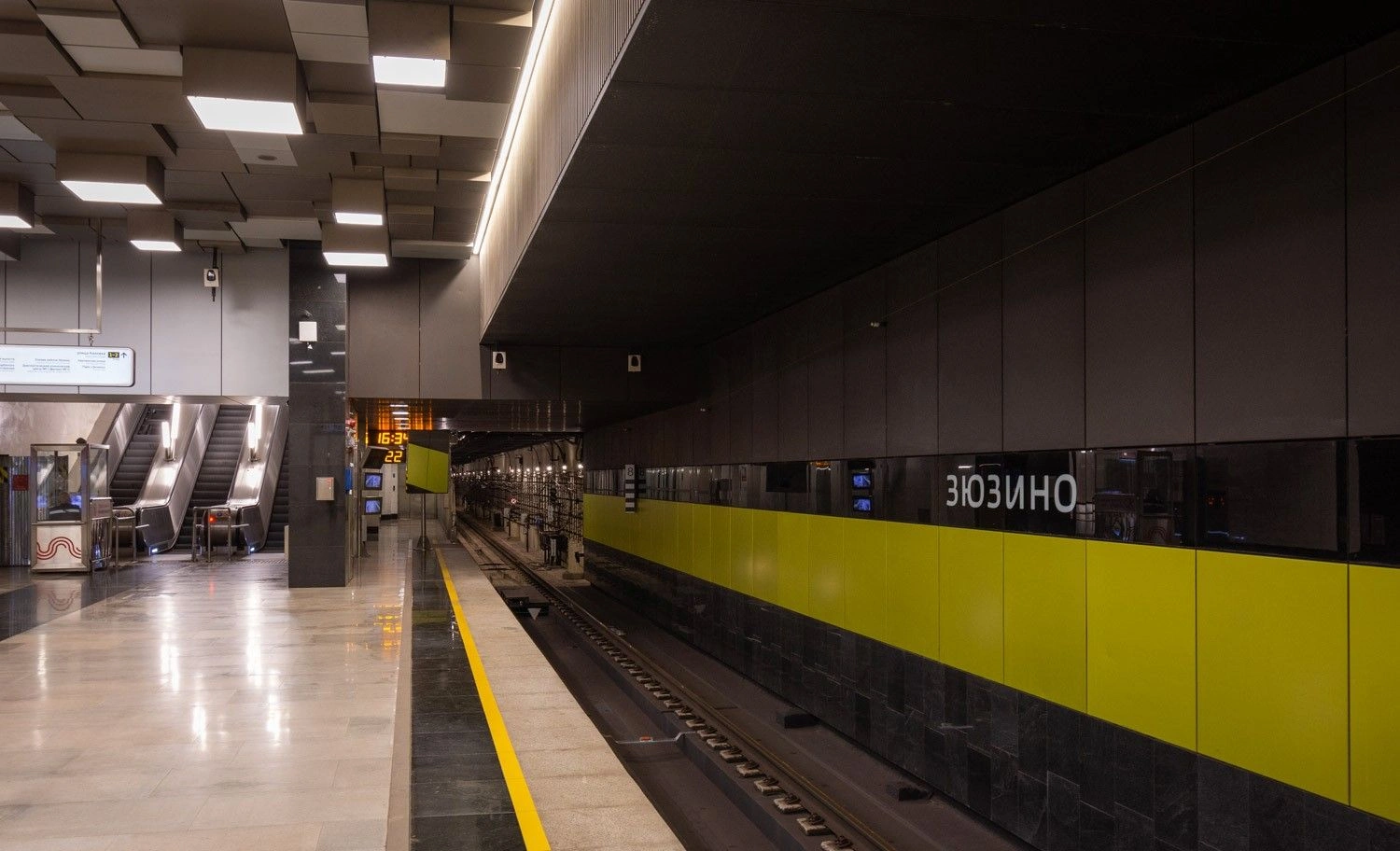

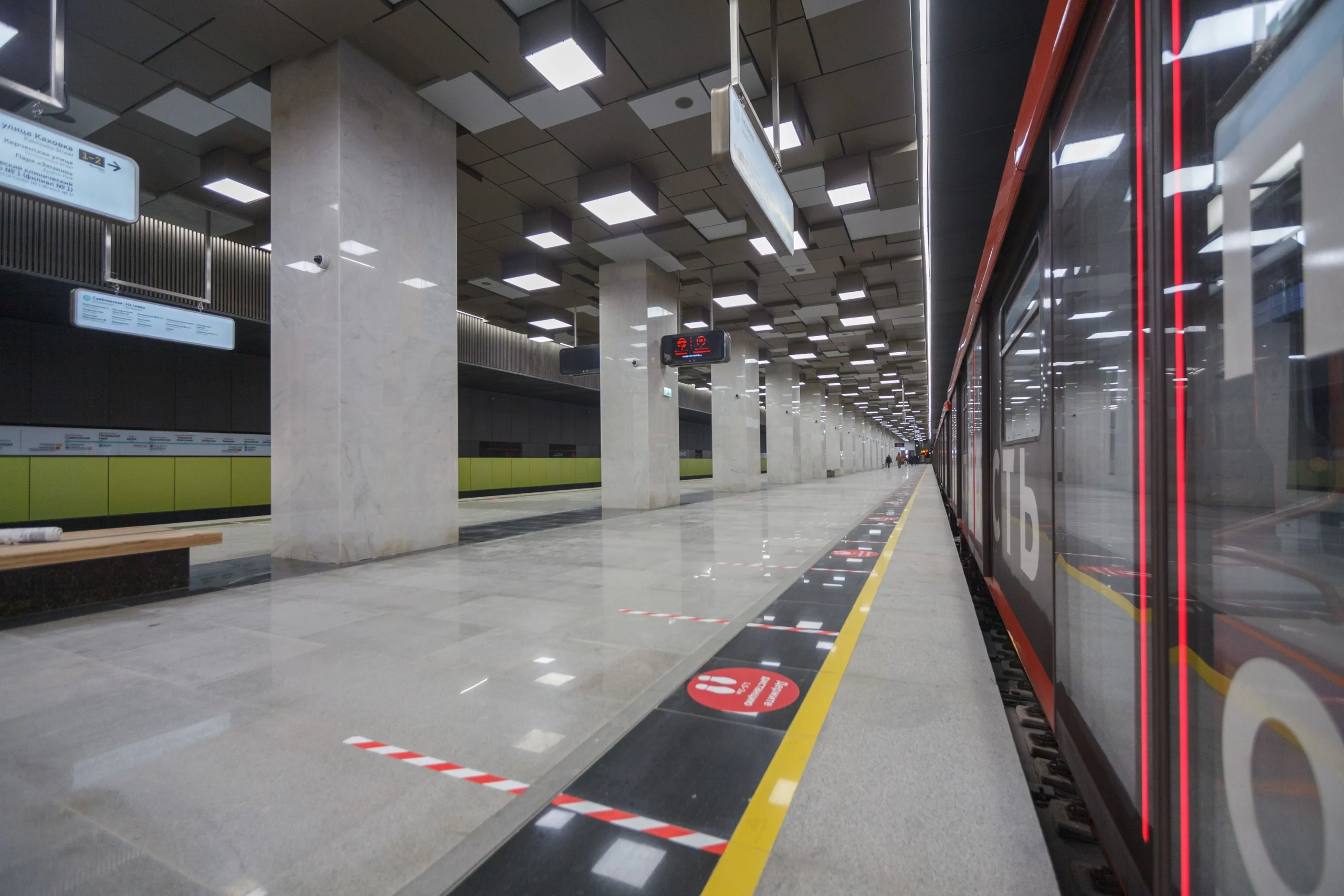

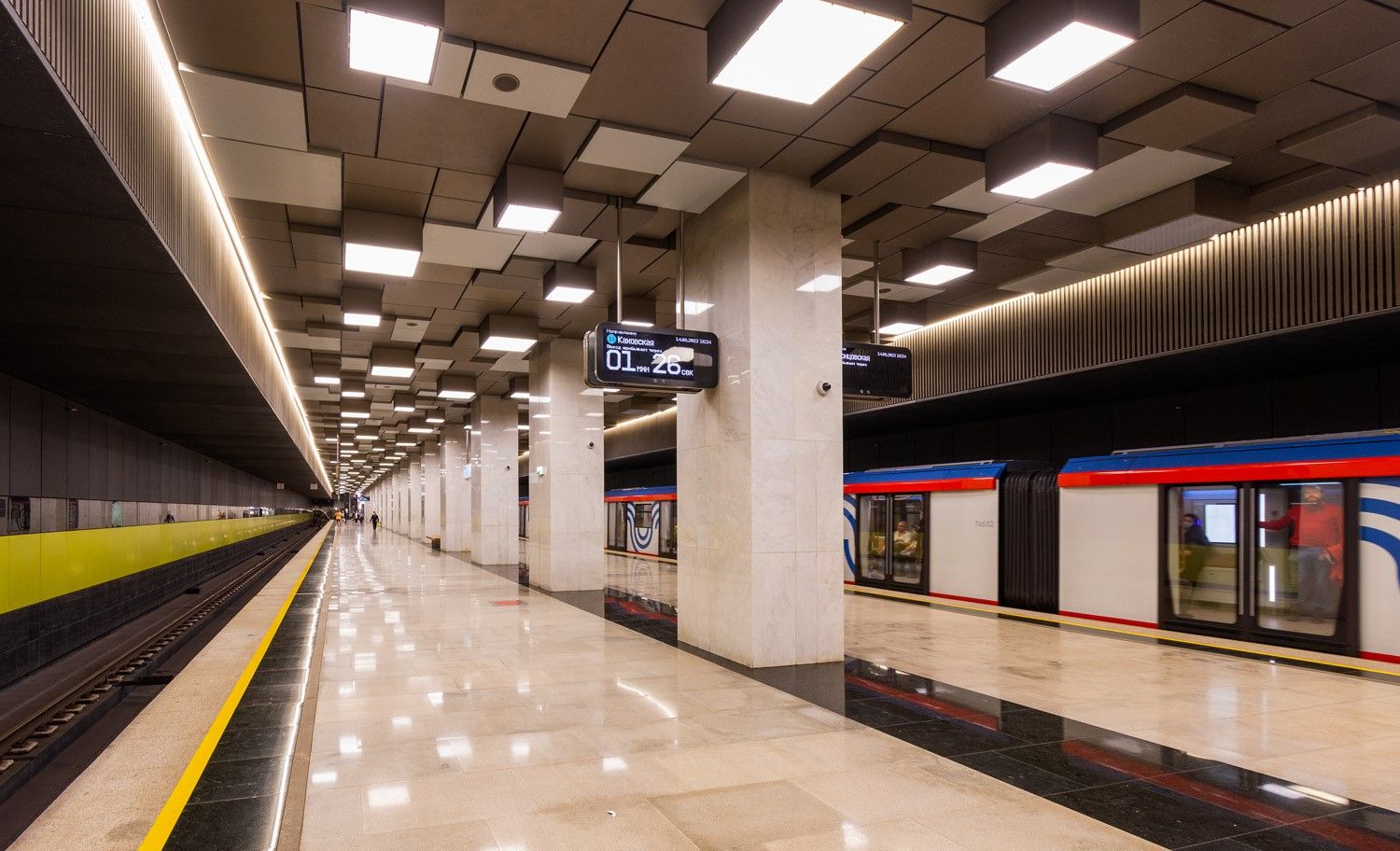

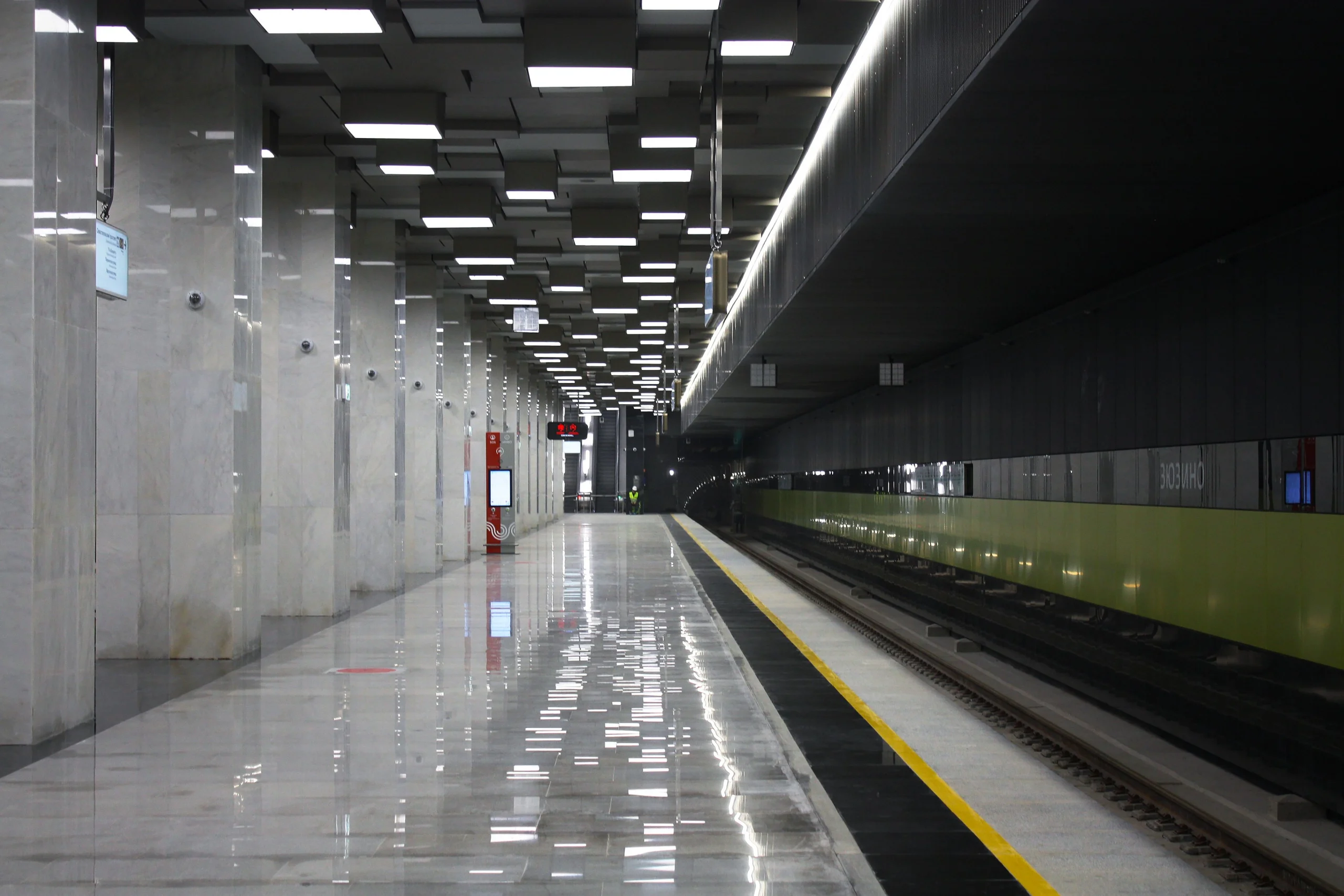

Zyuzino Metro Station is a modern facility of the Moscow Metro on the southern section of the Large Circle Line (LCL), located on the border of the Zyuzino and Cheryomushki districts in the South-Western Administrative Okrug of Moscow. The station project is implemented as a shallow column two-span station with a single island platform at a depth of approximately 17.5 meters beneath Kakhovka Street and Sevastopol Avenue. The station has two underground vestibules with exits to major city thoroughfares. The architectural design of the station combines futuristic elements with reference to the historical context of the district: the interior is executed in a contrasting color palette, and the central artistic feature is a volumetric suspended ceiling resembling a honeycomb.
Scope of works
- Total tunnel length: 2.5 km
- Internal tunnel diameter: 5.4 meters
- Tunnel construction method: TBM
- Installation of the permanent way superstructure: 2.9 km
- Total built-up area: 19.5 thousand m2
- Cast-in-place reinforced concrete of the station: 27 thousand m3
- Installation of engineering systems: 37 systems
- Total length of cable products: 540 km
- 350 service and technical rooms at the station
- Architectural and finishing works: granite, marble, aluminum panels
- Commissioning works
